PressFit30 for Dub (29mm) MTB Crank Sets

PF30-DUB-MT-BLK-ASMCT

Size Guide
Color
Black
Bearing



          • JUST THE FACTS:

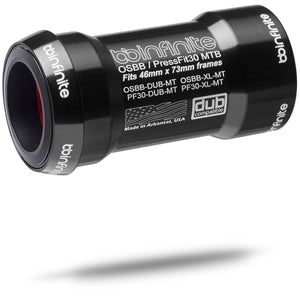

            The 29mm PressFit30 bottom bracket for DUB MTB cranksets module works with all DUB mountain bike crank sets on the market. All of our modules ship with the special press tools and retaining compounds you'll need. All you need is the press.

          • MORE THAN EXTREME SPEED AND SILENCE:

            BBInfinite's PressFit30 bottom bracket for DUB MTB cranksets maintain optimal chain-lines for crisp, consistent shifting and drive train performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of our TypeII MilSpec hard anodized finish, to the sculpted lines of our One-Piece Design, every aspect of our architecture fuses beauty with durability and performance.




            Our DUB spindle optimized design is set to the widest stance the crank format allows while ensuring that interfaces between crank arm splines and spindle splines have maximum engagement and Q-factor is set as narrow as possible.

            POWER METER FRIENDLY

            All BBInfinite bottom brackets for DUB spindle crank sets are 100% compatible with all crank-based power meters. Our flange-less drive-side architecture ensures zero interference with protruding power-meter back plates such as those found on Quarqs and SRMs.

            WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:

            Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.

            A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.



      class="tabs-content">
      • WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?

        BBInfinite OPD is the answer for creaking bottom bracket problems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.

        INSTALLATION IS A SNAP WITH BBINFINITE:

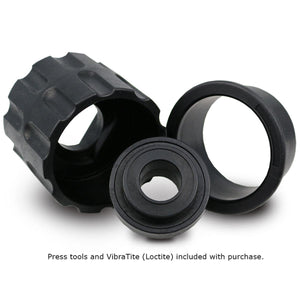

        Every BBInfinite module ships with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press for this road bike bottom bracket. If you need a press, check out our Master Tool Press.



        BB Standard

        SRAM Part Number

        BBInfinite Part Number

        Common Fitment Examples

        PF30 road (68mm x 46mm)

        00.6418.018.000

        PF30-DUB-RD

        Cannondale SuperSix Evo Gen1, Parlee Altum

        PF30A (73mm x 46mm assymmetrical)

        00.6418.028.001

        PF3A-DUB-RD

        Cannondale SuperSix Evo Gen2, Cannnodale Slice

        PF30 MTB (73mm x 46mm)

        00.6418.028.001

        PF30-DUB-MT

        Cannondale Scalpel Gen1

        OSBB road (61mm x 46mm)

        00.6418.018.000

        OSBB-DUB-RD

        Specialized road bikes only (2015-up bikes have BB30 cups epoxied-in

        OSBB MTB (73mm x 46mm)

        00.6418.028.001

        OSBB-DUB-MT

        Epic, Stumpjumper, etc (similar to PF30 Mtb, but there is a difference)

        BBRight (79mm x 46mm assymmetrical)

        00.6418.028.001

        BBRT-DUB-RD

        Cervelo S5 Gen1 and 2, Factor ONE

        BB386 Evo (86.5mm x 46mm)

        00.6418.026.000

        86EV-DUB-RD

        Wilier Cento1 SR, Orbea Orca Aero, Specialized Diverge

        BB86/PF86 (86.5mm x 41mm)

        00.6418.025.000

        BB86-DUB-RD

        Bianchi Oltre XR4, Giant TCR Adv., Scott Addict

        BB92/PF92 (92mm x 41mm)

        00.6418.025.000

        BB92-DUB-MT

        Yeti Cycles SB5.5 Carbon, Giant Anthem

        BSA30 (English threaded, 68mm)

        00.6418.015.000

        BENG-DUB-RD

        Any English threaded( 1.37" x 24 TPI) road frame shell

        BSA30 MTB (English threaded, 73mm)

        00.6418.015.000

        BENG-DUB-MT

        Any English threaded( 1.37" x 24 TPI) road frame shell

        BB30 (68mm x 42mm)

        00.6418.017.000

        coming soon

        CAAD10

        BBB30A (73mm x 42mm assymmetrical)

        00.6418.027.000

        coming soon

        CAAD12, Synapse Carbon

        BB30 MTB (73mm x42mm)

        00.6418.027.000

        coming soon

        Any BB30 MTB frameset



      • "" frameborder="0" height="720" width="1280">
      • Technical Specifications

        Weight: Ceramitech: 123g | ABEC-7: 128g

        Frame Width: 79mm

        Frame Diameter: 46mm

        Spindle Diameter: 30mm
