IF YOU'RE LOOKING FOR A REPLACEMENT BOTTOM BRACKET THAT WILL NEVER CREAK, AND SPINS LIKE MAD, YOU'VE COME TO THE RIGHT PLACE.
Attention: Specialized OSBB and BB30 are the same standard by a different name. Both are 42mm x 68mm. Any BB30 bottom bracket will work in OSBB.
Attention: If you have the newer FACT/Sworks crank set that features a 1-piece spindle you will need our FACT CRANK NDS PRE-LOAD ASSEMBLY to replace the triple grub screw device that comes stock. The OEM device will not work. If you have the older Hirth-Joint style FACT crank set (spindle splits in the middle), you will omit the OEM adjuster as well and simply use a single wave washer on the NDS.
JUST THE FACTS:

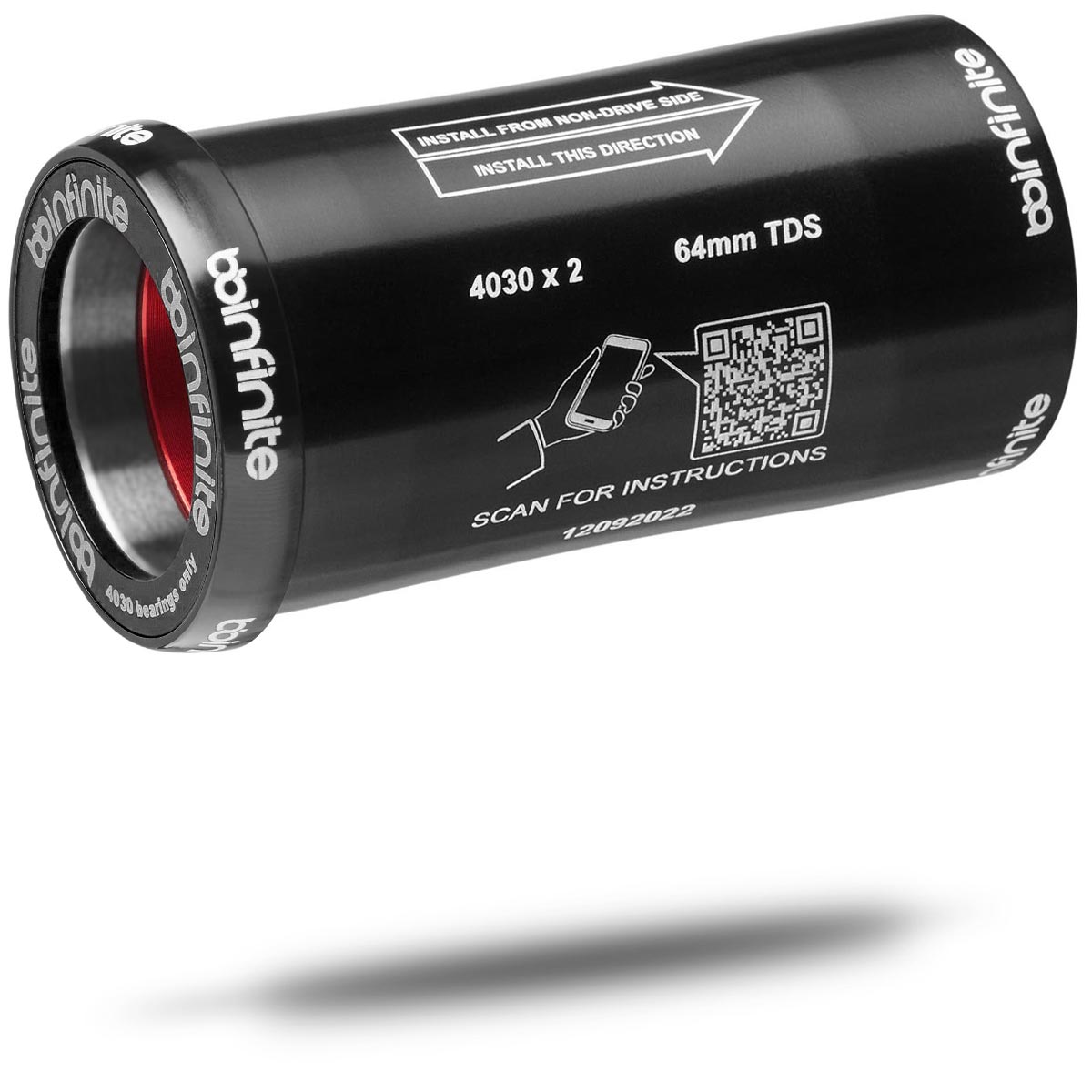

Our BBInfinite BB30 XL Bottom Bracket module works with all wide format 30mm spindle crank sets on the market, such as the FSA 386EVO cranks, Sram wide format cranks, and Easton EC90SL, just to name a few. All of our modules ship with the special press tools and retaining compounds you'll need. All you need is the press, such as a ParkTools HHP-2 or 3, or our own Master Tool Press which can be found here.
This bottom bracket module works in traditional 68mm width frames shells only.
*This product will require spacers to properly space the crank. Please refer to the chart to select the appropriate spacers for your crank. Wide format crank Spacer Chart
ABOUT OUR BEARING CHOICES:
Ceramitech Bearings: Our Si3n4 hybrid ceramic bearings feature ultra-spherical silicon nitride balls matched to SAE 52100 chrome steel bearing races that have been processed with additional heat treatment and polishing steps. The result is a hybrid-ceramic bearing that lasts longer than any steel bearing with spin performance no steel bearing can rival. We’re so confident in the durability of our Ceramitech bearings that we back them with a Lifetime Bearing Exchange warranty. These bearings feature mid-contact seals for extreme performance and endurance. Each bearing comes lubricated with Kluber Isoflex Topas NB52. Lifetime Warranty.
WS2 Coated Ceramitech Bearings: We took our amazing Ceramitech bearings and added an extremely durable, tungsten disulfide (WS2) coating that has a 0.03 coefficient of friction---which means it’s slicker than Teflon, graphite, and even molybdenum disulfide. WS2 has an affinity for oils and greases, which means it maintains a hydrodynamic layer of lubricant where it’s needed most. The result is astonishing spin performance and increased endurance. These bearings feature mid-contact seals for extreme performance and durability. Each bearing comes lubricated with Kluber Isoflex Topas NB52. Lifetime Warranty.
ABEC-7 Steel Bearings: Crafted from SAE 52100 chrome steel, our BBInfinite ABEC-7 (ISO 492, Class 4) bearings are so buttery that you’d have to buy our Ceramitechs to find anything better. These bearings feature mid-contact seals for extreme performance and durability. Each bearing comes lubricated with Kluber or Koyo. 1-Year Bearing Exchange Warranty.
MORE THAN EXTREME SPEED AND SILENCE:
BBInfinite bottom brackets for 30mm spindle crank sets maintain optimal chain-lines for crisp, consistent shifting and drivetrain performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of our TypeII MilSpec hard anodized finish to the sculpted lines of our One-Piece design that unitizes the bottom bracket structure to eliminate all potential creaks before they start, every aspect of our architecture fuses beauty with durability and performance.
Our 30mm spindle optimized design is set to the widest stance the crank set allows while ensuring that interfaces between crank arm splines and spindle splines have maximum engagement and Q-factor is set as narrow as possible.
POWER METER FRIENDLY
All BBInfinite bottom brackets for 30mm spindle crank sets are 100% compatible with all crank-based power meters. Our flange-less drive-side architecture ensures zero interference with protruding power-meter back plates such as those found on Quarqs and SRMs.
WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:
Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.
A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.
WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?
BBInfinite OPD is the answer for creaking bottom bracket problems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.
INSTALLATION IS A SNAP WITH BBINFINITE:
Every BBInfinite module ships with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press for this road bike bottom bracket. If you need a press, check out our Master Tool Press.
