OSBB PressFit for Dub (29mm) MTB Crank Sets

Size Guide
Color
Black
Bearing



  • JUST THE FACTS:

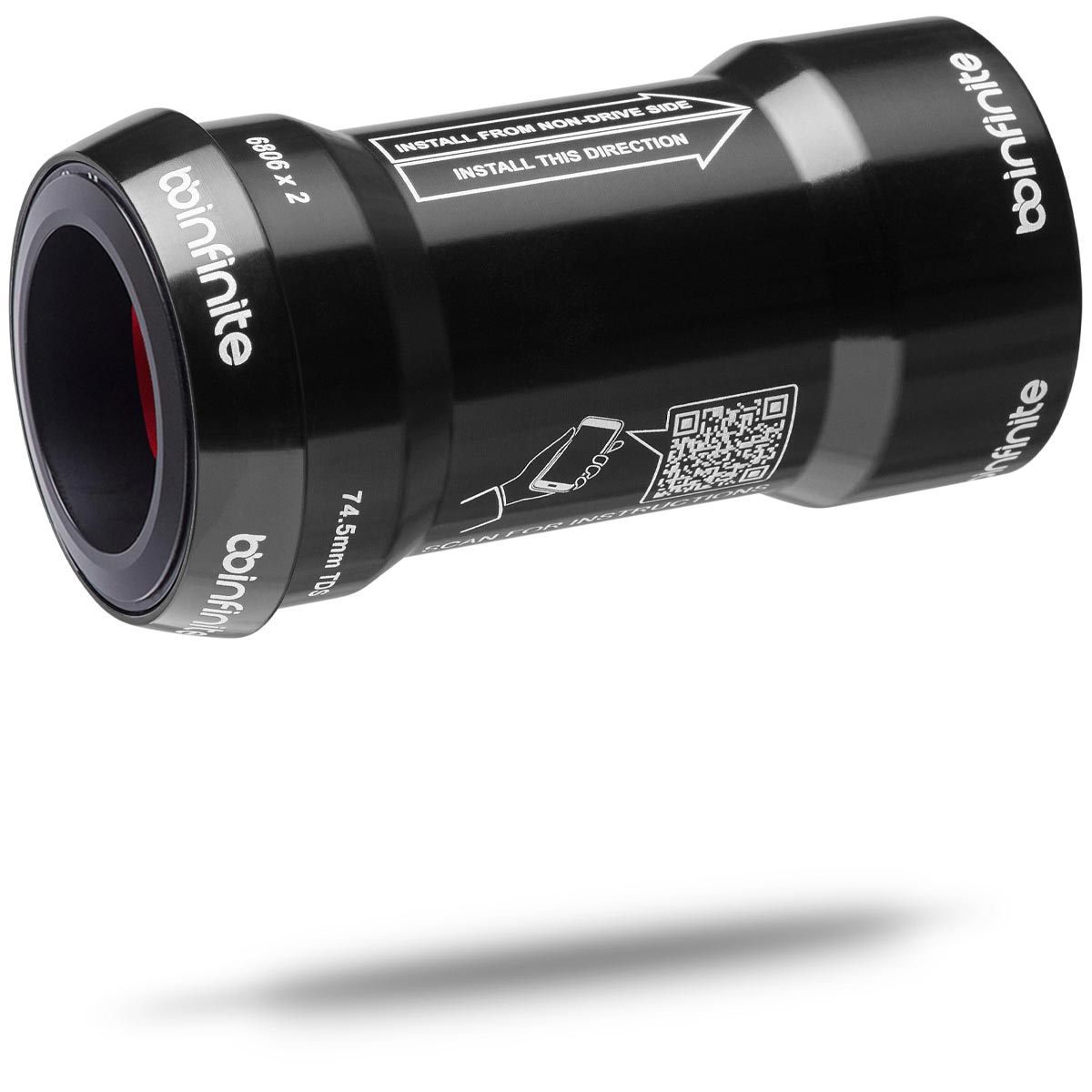

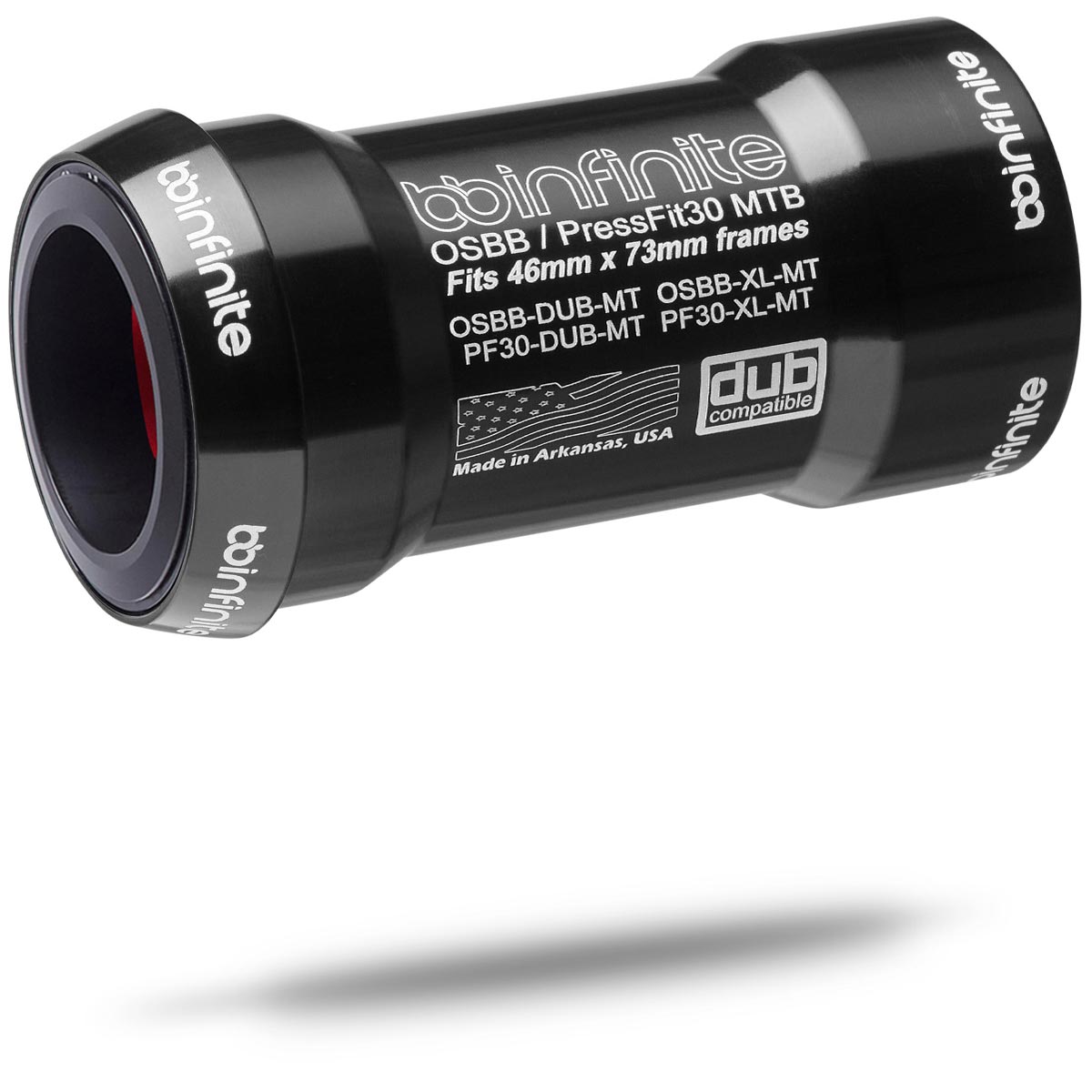

    Our DUB OSBB PressFit MTB module works with all DUB mountain bike crank sets on the market. All of our modules ship with the special press tools and retaining compounds you'll need. All you need is the press.

    NOTE: OSBB PressFit MTB is NOT the same as OSBB MTB or PF30 MTB. OSBB Pressift MTB is 46mm x 73mm. OSBB MTB is just BB30 (42mm x 73mm) by another name. Although OSBB Pressfit MTB and PF30 MTB look the same on paper, 46mm x 73mm, there is a slight diameter difference due to the way Specialized manufactures their carbon frames. For the perfect match to your carbon Specialized frame use this product.

  • ABOUT OUR BEARING CHOICES:

    Ceramitech Bearings: Our Si3n4 hybrid ceramic bearings feature ultra-spherical silicon nitride balls matched to SAE 52100 chrome steel bearing races that have been processed with additional heat treatment and polishing steps. The result is a hybrid-ceramic bearing that lasts longer than any steel bearing with spin performance no steel bearing can rival. We’re so confident in the durability of our Ceramitech bearings that we back them with a Lifetime Bearing Exchange warranty. These bearings feature mid-contact seals for extreme performance and endurance. Each bearing comes lubricated with Kluber Isoflex Topas NB52. Lifetime warranty.

    ABEC-7 Steel Bearings: Crafted from SAE 52100 chrome steel, our BBInfinite ABEC-7 (ISO 492, Class 4) bearings are so buttery that you’d have to buy our Ceramitechs to find anything better. These bearings feature mid-contact seals for extreme performance and endurance. Each bearing comes lubricated with Kluber or Koyo. 1-Year Bearing Exchange Warranty.

  • MORE THAN EXTREME SPEED AND SILENCE:

    BBInfinite DUB modules maintain optimal chain-lines for crisp, consistent shifting and drive train performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of our TypeII MilSpec hard anodized finish, to the sculpted lines of our One-Piece Design, every aspect of our architecture fuses beauty with durability and performance.




    Our DUB spindle optimized design is set to the widest stance the crank format allows while ensuring that interfaces between crank arm splines and spindle splines have maximum engagement and Q-factor is set as narrow as possible.

    POWER METER FRIENDLY

    This DUB bottom bracket module is 100% compatible with all crank-based power meters. Our flange-less drive-side architecture ensures zero interference with protruding power-meter back plates such as those found on Quarqs and SRMs.

    WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:

    Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.

    A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.



    WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?

    BBInfinite OPD is the answer for creaking bottom bracket problems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.

    INSTALLATION IS A SNAP WITH BBINFINITE:

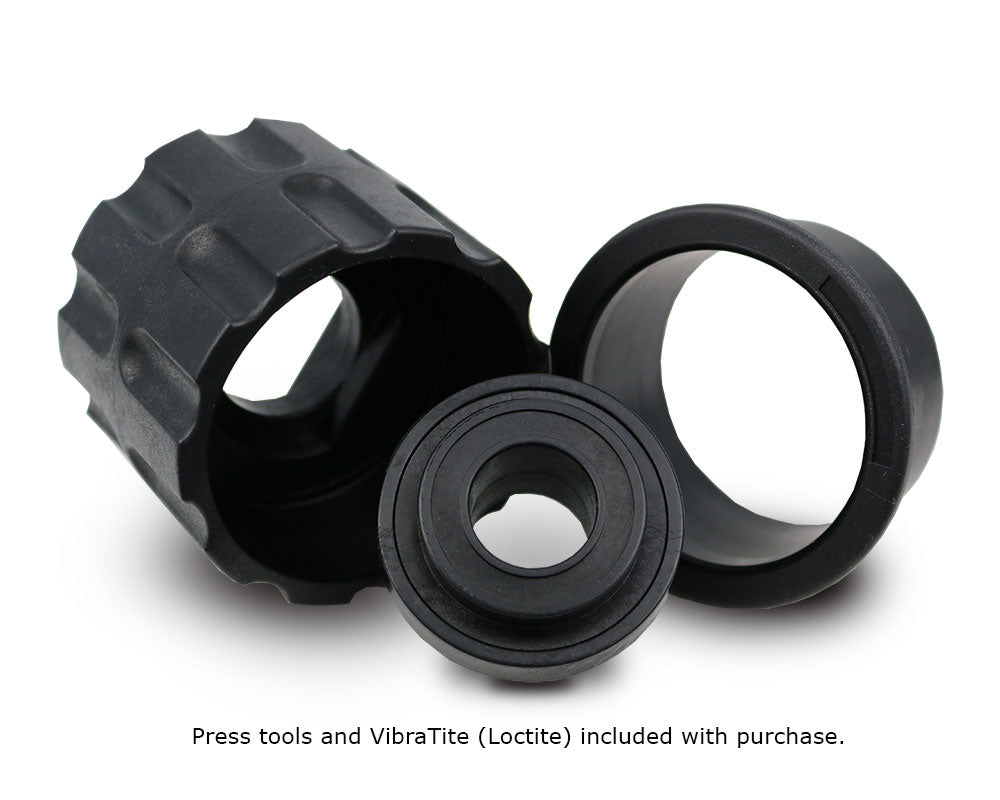

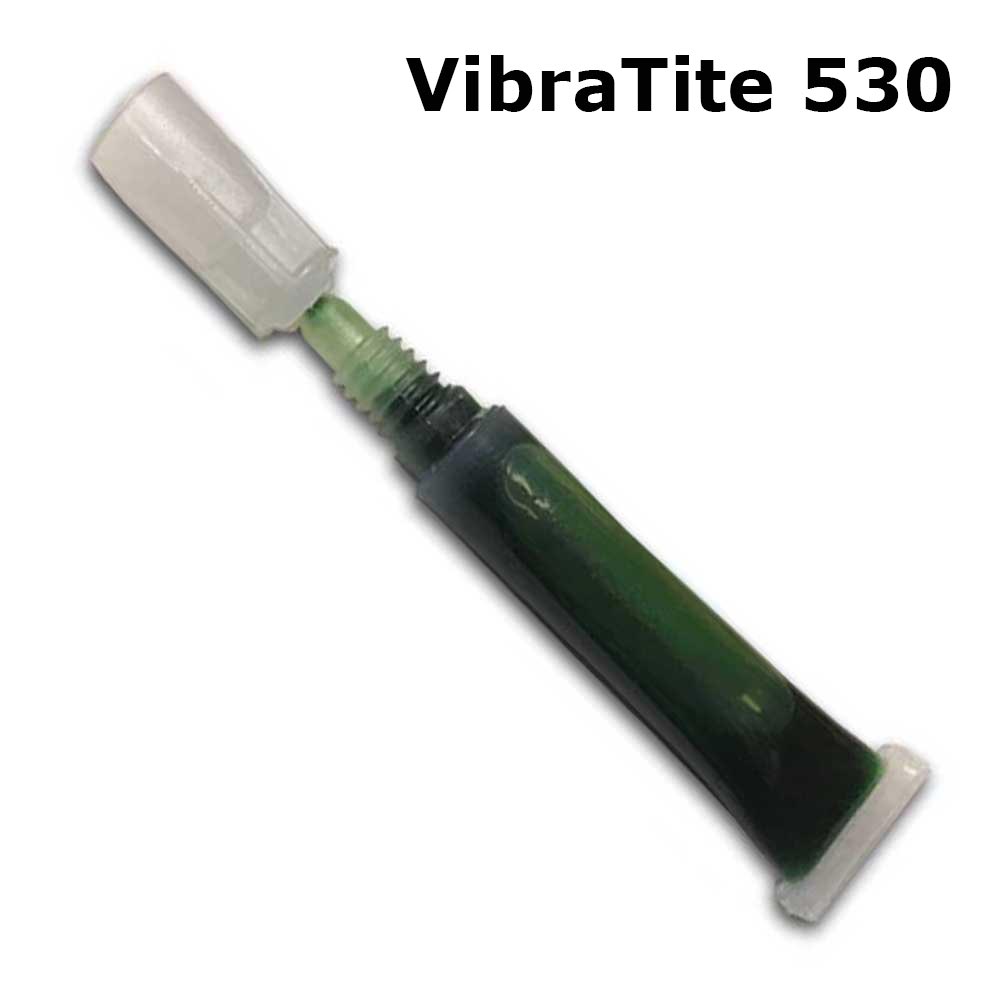

    All BBInfinite OPD bottom brackets ship with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press. If you need a press, check out our Master Tool Press.



    BB Standard

    SRAM Part Number

    BBInfinite Part Number

    Common Fitment Examples

    PF30 road (68mm x 46mm)

    00.6418.018.000

    PF30-DUB-RD

    Cannondale SuperSix Evo Gen1, Parlee Altum

    PF30A (73mm x 46mm assymmetrical)

    00.6418.028.001

    PF3A-DUB-RD

    Cannondale SuperSix Evo Gen2, Cannnodale Slice

    PF30 MTB (73mm x 46mm)

    00.6418.028.001

    PF30-DUB-MT

    Cannondale Scalpel Gen1

    OSBB road (61mm x 46mm)

    00.6418.018.000

    OSBB-DUB-RD

    Specialized road bikes only (2015-up bikes have BB30 cups epoxied-in

    OSBB MTB (73mm x 46mm)

    00.6418.028.001

    OSBB-DUB-MT

    Epic, Stumpjumper, etc (similar to PF30 Mtb, but there is a difference)

    BBRight (79mm x 46mm assymmetrical)

    00.6418.028.001

    BBRT-DUB-RD

    Cervelo S5 Gen1 and 2, Factor ONE

    BB386 Evo (86.5mm x 46mm)

    00.6418.026.000

    86EV-DUB-RD

    Wilier Cento1 SR, Orbea Orca Aero, Specialized Diverge

    BB86/PF86 (86.5mm x 41mm)

    00.6418.025.000

    BB86-DUB-RD

    Bianchi Oltre XR4, Giant TCR Adv., Scott Addict

    BB92/PF92 (92mm x 41mm)

    00.6418.025.000

    BB92-DUB-MT

    Yeti Cycles SB5.5 Carbon, Giant Anthem

    BSA30 (English threaded, 68mm)

    00.6418.015.000

    BENG-DUB-RD

    Any English threaded( 1.37" x 24 TPI) road frame shell

    BSA30 MTB (English threaded, 73mm)

    00.6418.015.000

    BENG-DUB-MT

    Any English threaded( 1.37" x 24 TPI) road frame shell

    BB30 (68mm x 42mm)

    00.6418.017.000

    coming soon

    CAAD10

    BBB30A (73mm x 42mm assymmetrical)

    00.6418.027.000

    coming soon

    CAAD12, Synapse Carbon

    BB30 MTB (73mm x42mm)

    00.6418.027.000

    coming soon

    Any BB30 MTB frameset



  • "" frameborder="0" height="720" width="1280">
  • Technical Specifications

    Weight: Ceramitech: 123g | ABEC-7: 128g

    Frame Width: 73mm

    Frame Diameter: 46mm

    Spindle Diameter: 30mm or DUB



Bottom Bracket Selection Guide
