PressFit30 (68mm) - DirectFit Campagnolo UltraTorque

PF30-CA-RD-BLK-ASMCT

Size Guide
Bearing



  • JUST THE FACTS:

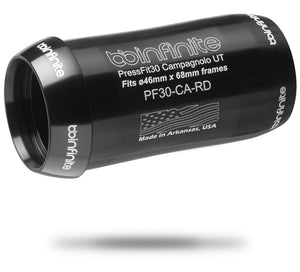

    The BBInfinite PressFit30 DirectFit Campagnolo module is compatible with all Campagnolo UltraTorque road cranksets on the market, from Mirage to Super Record. DirectFit means you can use the USB or Cult bearings already on your crank, or use the included bearing set, or upgrade to BBInfinite Ceramitechs for ultimate performance. This 68mm BB ships with the special press tools and retaining compounds you'll need. All you need is the press for this 68mm bottom bracket.

    Purchase the correct Campagnolo Bracket if you have ANY carbon fiber SPECIALIZED road bicycle with a pressfit bottom bracket.

    MORE THAN EXTREME SPEED AND SILENCE:

    BBInfinite DirectFit Campagnolo bottom brackets set optimal chain-lines for crisp, consistent shifting and drivetrain performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of our TypeII MilSpec hard anodized finish to the sculpted lines of our One-Piece design that unitizes the bottom bracket structure to eliminate all potential creaks before they start, every aspect of our architecture fuses beauty with durability and performance.



    Our Campagnolo UltraTorque optimized design is set to the widest stance the crank set allows while ensuring that the Hirth joint interfaces have maximum engagement and Q-factor is set as narrow as possible. To ensure ease of maintenance over time, all BBInfinite DirectFit Campagnolo bottom brackets use the standard 6805N bearings specified by Campaganolo.

    POWER METER FRIENDLY

    BBInfinite DirectFit Campagnolo bottom brackets are 100% compatible with all crank-based UltraTorque power meters. Our flange-less drive-side architecture ensures zero interference with protruding power meter back plates such as those found on SRMs.

    WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:

    Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.

    A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.

    WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?

    BBInfinite OPD is the answer for creaking bottom bracket problems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.

    INSTALLATION IS A SNAP WITH BBINFINITE:

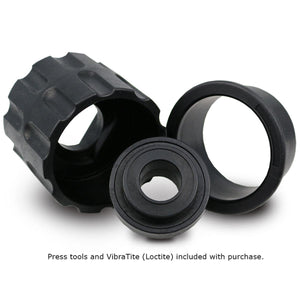

    Every BBInfinite bottom bracket module ships with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press for this road bike bottom bracket. If you need a press, check out our Master Tool Press.



  • Technical Specifications

    Weight:

    CERAMITECH: 93g | ABEC-7 SS: 103g | Module Only: 65g

    Frame Width: 68mm

    Frame Diameter: 46mm

    Spindle Diameter: 25mm

    Bearing Size: 6805N

    Ceramitech 6805N | ABEC-7 6805N



Bottom Bracket Selection Guide
