Gxp Parts/Kits and Shimano to Gxp Conversion Kits

About the Gxp Small Parts Kit: These parts fit all BBInfinite DirectFit Gxp modules and are direct replacements for parts that come stock. These parts are not to convert any product to Gxp. Use a Shimano to Gxp Conversion Kit (for all BBInfinite DirectFit Shimano modules) to convert a Shimano module to Gxp.

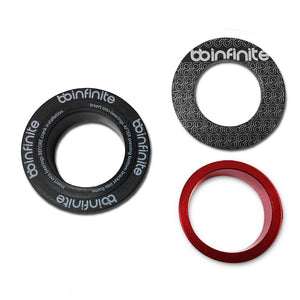

Comes with: 1) BBInfinite Gxp alloy bearing shield, 1) Gxp bushing, 1) Polymer "top hat" bushing.



About Shimano to Gxp Conversion Kit (for all BBInfinite DirectFit Shimano modules): The Shimano to Gxp Conversion (all modules) include everything you need to convert a BBInfinite one-piece DirectFit Shimano module from Shimano to Gxp. Note: Gxp modules CANNOT be converted to Shimano.

Comes with: 1) BBInfinite XLS Gxp alloy bearing shield, 1) Gxp bushing, 1) Polymer "top hat" bushing.



About Shimano to Gxp Conversion Kit for ALL English and Italian Threaded Bottom Brackets: The Shimano to Gxp Conversion for all English and Italian Threaded Bottom Brackets includes everything you need to convert a BBInfinite English or Italian Threaded Bottom Bracket from Shimano HollowTech2 to Gxp.

Comes with: 1) BBInfinite XLS Gxp alloy bearing shield, 1) Gxp bushing, 1) Polymer "top hat" bushing.



About Shimano to Gxp Conversion Kit for ALL T47i and T47e 1-piece Modules: The Shimano to Gxp Conversion for all T47 modules include everything you need to convert a BBInfinite one-piece DirectFit Shimano module from Shimano HollowTech2 to Gxp. Note: All T47i and T47e modules can be converted to Shimano or Gxp with a simple hardware change. The module DOES NOT NEED to be removed to do the conversion.

Comes with: 1) BBInfinite XLS Gxp alloy bearing shield, 1) Gxp bushing, 1) Polymer "top hat" bushing.



About Shimano to Gxp Kit for Trek BB90/BB95: This kit is to convert a BBInfinite Trek BB90/BB95 Shimano Bottom Bracket Kit set up to accept a Gxp crank set.

Comes with: 1) BBInfinite Gxp XLS alloy bearing shield, 1) Gxp bushing, 1) Polymer "top hat" bushing, 1) 2ml tube VibraTite530

No wave washers or shims are recommended nor required. This BB conversion kit is all you need.

Removal of one bearing from the frame is required for installation of red Gxp bushing. Use VibraTite530 when reinstalling bearing after Gxp bushing placement is complete.

This bottom bracket conversion kit will not work with any BBInfinite Trek BB90/BB95 Kit.

Size Guide
Alloy Shield Color
Black
Red
Part/Kit Type
Bottom Bracket Selection Guide
