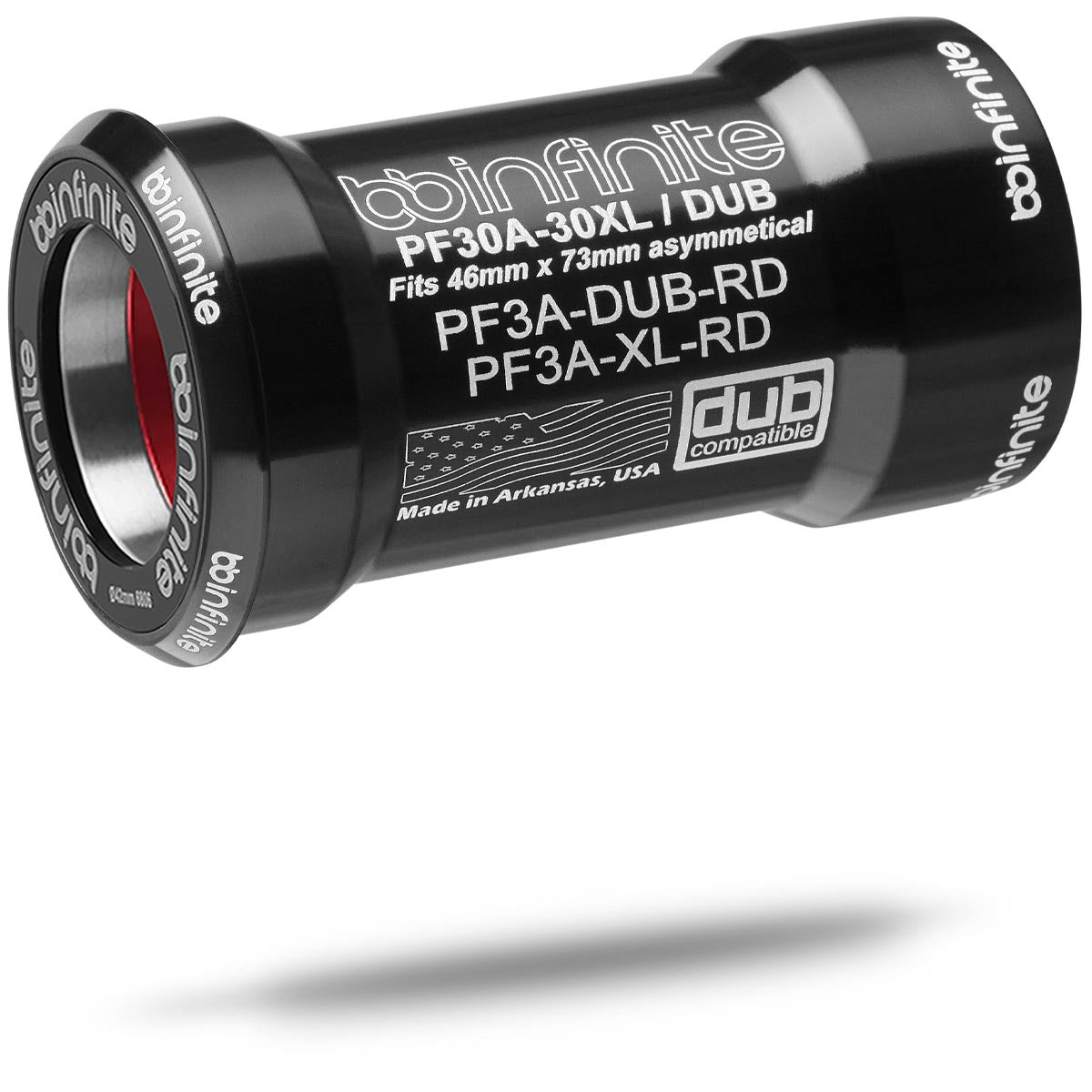

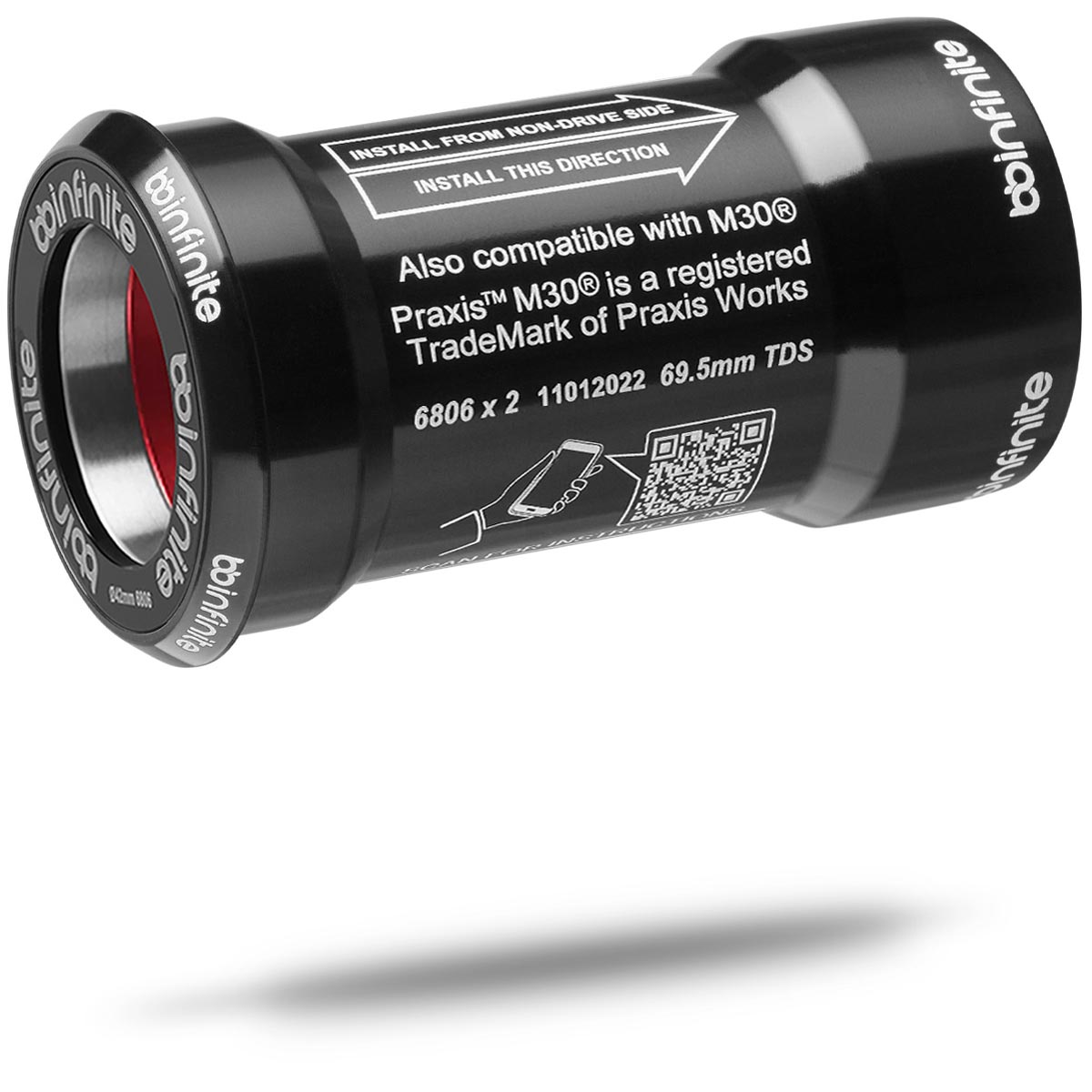

PressFit30A (73mm) - Wide Format (XL) 30mm Spindle

PF3A-XL-RD-BLK-ASMWS

Size Guide
Bearing



  • For all 2016 and up SuperSix Evo Hi-Mod and Black Inc. models and ALL 2017 and up Evo's (non-HiMods, HiMods, Black Inc.). This is what you need for any new SystemSix and all 2016 and up Slice/Slice HiMods.

    The BBInfinite PF30A Standard Road Bottom Bracket works with all wide format 30mm spindle crank sets on the market such as the FSA 386EVO cranks, Sram wide format cranks, and Easton EC90SL, just to name a few.

    NOTE: This PF30A XL WILL NOT work with any Cannondale Si-Series crank sets. Si crank sets must use the narrow version found here.

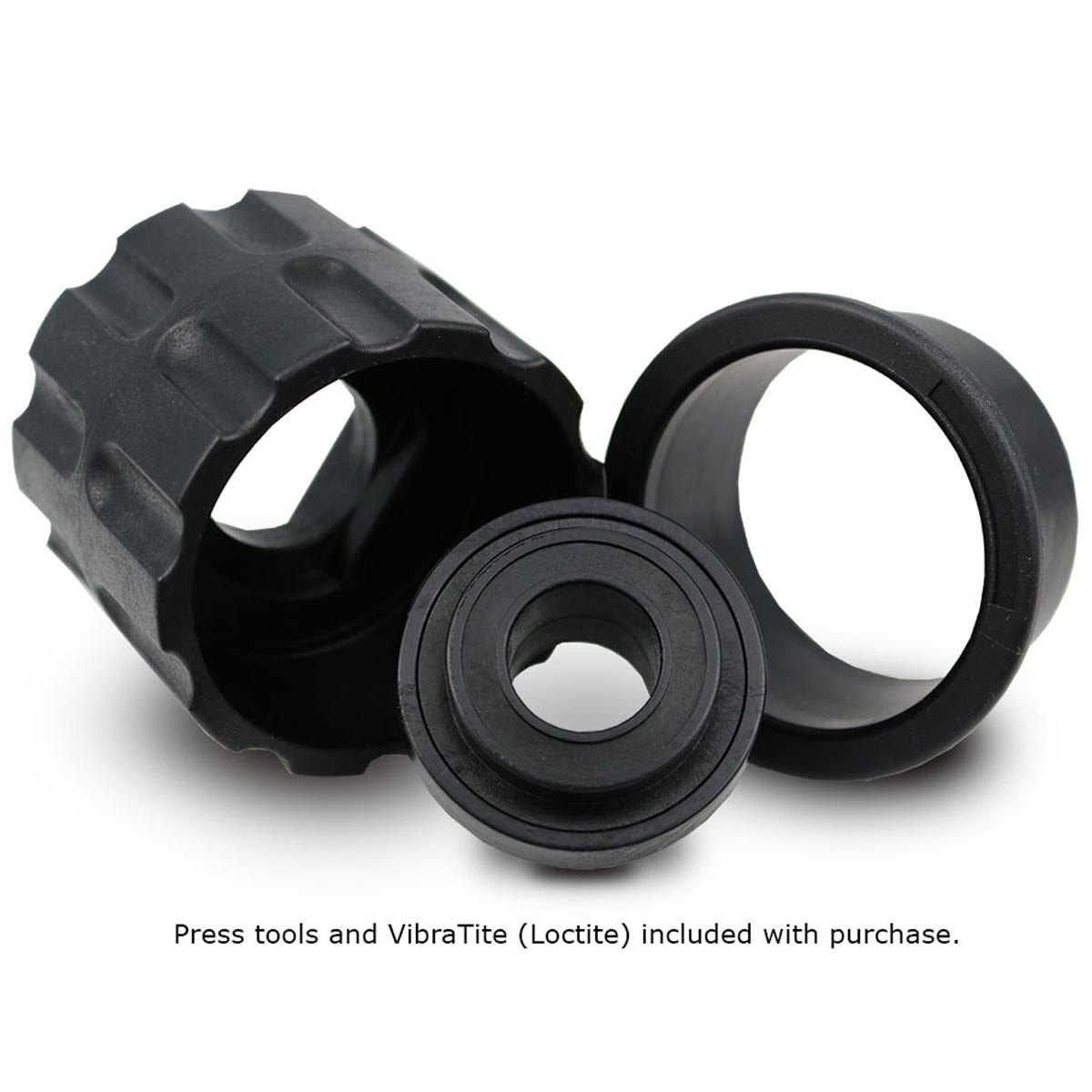

    All of our modules ship with the special press tools and retaining compounds you'll need. All you need is the press.

    If you have a 2016 and down SuperSix Evo that is not a Hi-Mod, or you have a 2015 and down SuperSix Evo Hi-Mod, purchase this PressFit 30 wide format Bottom Bracket instead. If you have any doubts about what to buy, email us and we'll help you right away.

    Replacement bottom brackets are compatible with Shimano Di2 or SRAM eTap systems, HOWEVER, some minor fitting is requited with mechanical shifting systems due to unorthodox semi-internal cable routing through the frame BB shell. Read our PF30A: Install Solved post to find detailed instructions.

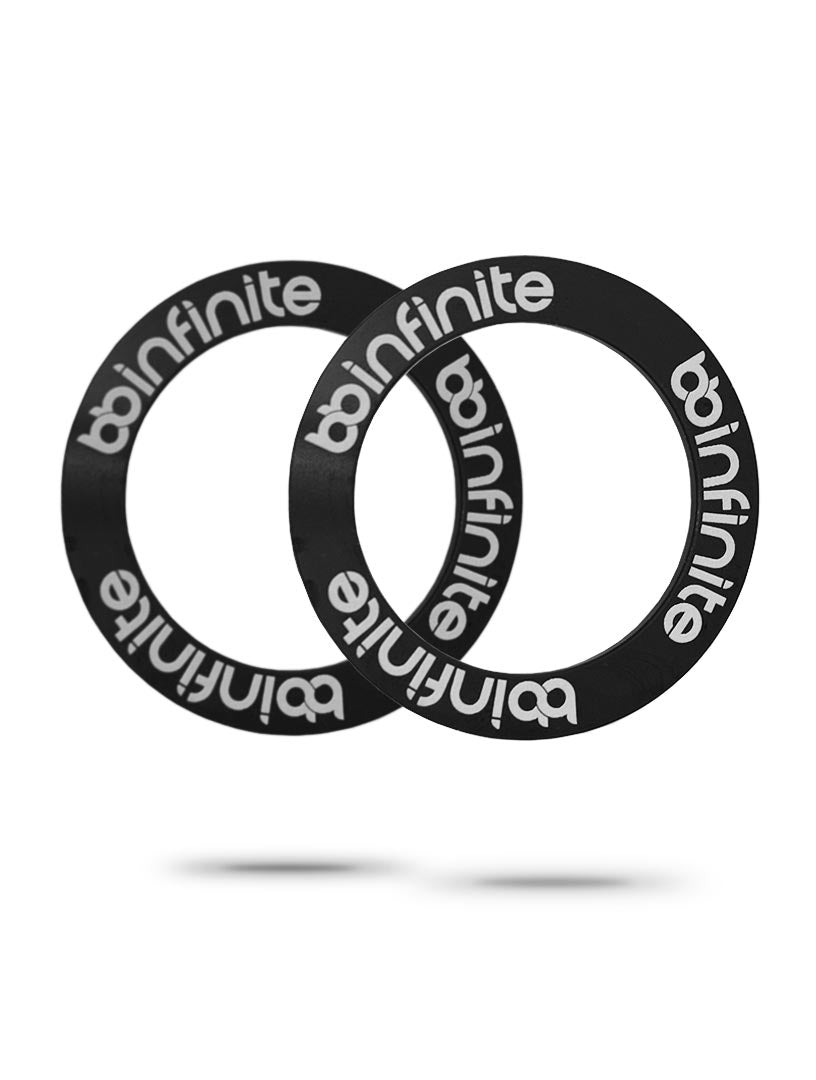

    *This product may require spacers to properly space the crank. Please refer to the chart to select the appropriate spacers for your crank. Wide format crank Spacer Chart




    JUST THE FACTS:

    MORE THAN EXTREME SPEED AND SILENCE:

    BBInfinite bottom brackets for 30mm spindle crank sets maintain optimal chain-lines for crisp, consistent shifting and drivetrain performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of our TypeII MilSpec hard anodized finish to the sculpted lines of our One-Piece design that unitizes the bottom bracket structure to eliminate all potential creaks before they start, every aspect of our arcitecture fuses beauty with durability and performnace.



    Our 30mm spindle optimized design is set to the widest stance the crank set allows while ensuring that interfaces between crank arm splines and spindle splines have maximum engagement and Q-factor is set as narrow as possible.

    POWER METER FRIENDLY

    All BBInfinite bottom brackets for 30mm spindle crank sets are 100% compatible with all crank-based power meters. Our flange-less drive-side arcitecture ensures zero interference with protruding power-meter back plates such as those found on Quarqs and SRMs.

    WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:

    Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.

    A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.

    WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?

    BBInfinite OPD is the answer for creaking bottom bracket problems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.

    INSTALLATION IS A SNAP WITH BBINFINITE:

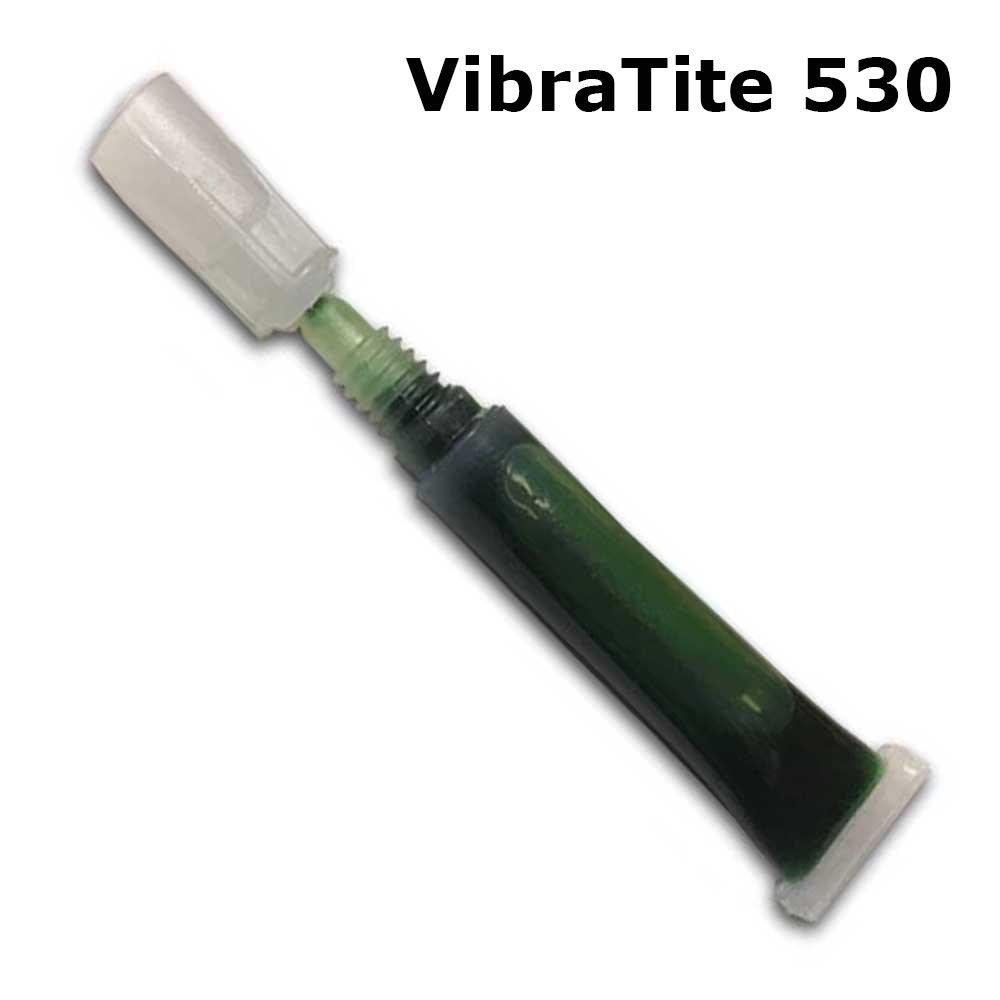

    Every BBInfinite module ships with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press for this road bike bottom bracket. If you need a press, check out our Master Tool Press.



  • Technical Specifications

    Weight:

    WS2: 105g | CERAMITECH: 107g | ABEC-7 SS: 112g

    Frame Width: 73mm

    Frame Diameter: 46mm

    Spindle Diameter: 30mm

    Spindle Length: 100mm+

    Bearing Size: 6806

    Ceramitech 6806 | ABEC-7 6806

  • Spacers Stack for PF3A-XL-RD Road

    PF3A-XL-RD Road Crank Spacer Chart

    Crank Length(mm) Spacer SKU
    102.25 -
    106.25 Spacer-2.5MM-SET
    110.75 Spacer-2.5MM-SET
